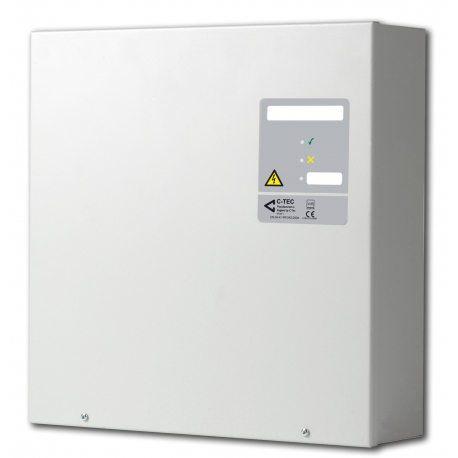

Toiteplokk EN-54 24VDC, 3A, kast, C-TEC
Approvals/certifications Certified to EN54-4 by the VdS (0786-CPD-21419) / (G215022)
Application/operation A boxed Mains to regulated DC power supply providing 3A @ 24V DC. Fully compliant with EN54-4, it includes a single pole volt-free changeover relay that switches for any fault condition.
Mains supply 230V 50/60Hz.
Mains rated current 810mA maximum. (187 VA)
Total output current limited to 3A (Max. continuous output current).
Output 2A DC current (I max a, PLK2 link fitted), 1A charge current; 3A DC current (I max b, charging turned off).
Battery charge capacity 7 Ah to 18 Ah.
Max battery size and type 2 x 12V 18 Ah VRLA.
Indicators Supply Present (Green); General Fault (Amber); Auxiliary Fault (Amber); Hazardous Voltages Present (Red).
Connections Mains Input (CONN1); Supply Output (CONN5); Battery Input (CONN5); Fault Relay (CONN3); Charge Off Input (CONN4). Battery Monitoring On/Off Link (PLK1); Battery Charge Current Link (PLK2); High Temp. Output (PL2).
Product dimensions (mm) 404 W x 404 H x 110 D mm.
Construction & finish Metal lid and base; RAL7035 textured.
IP Rating IP30 (designed for indoor use only).
Weight 5.25kg (without batteries).
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.
