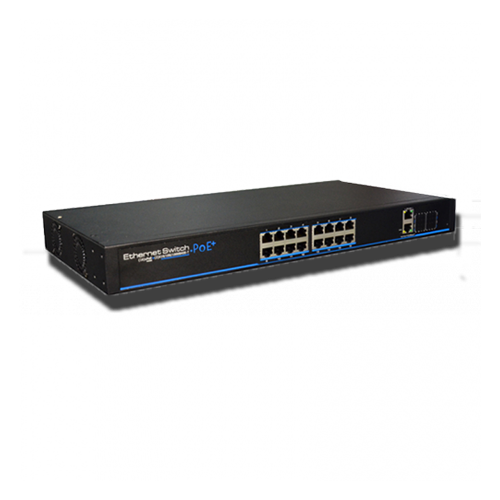

16 Ports PoE Fast Managed Ethernet Switch
16 Ports PoE Fast Managed Ethernet Switch - Image 2

16 Ports PoE Fast Managed Ethernet Switch

SKU: UTP3-SW16-TP300 Category: Switch
Monthly payment from 15.73€ / 36 months

16 Ports PoE Fast Managed Ethernet Switch

  • Provides 16 cameras with 48V POE power
  • 10/100/1000 Base-T (PoE)
  • signal transmission up to 250m @ 10mbps
  • 2x 10/100/1000 Base- T uplink Ethernet port

Technical specification

Manual

Product on UTEPO webpage

401.38€

Out of stock

  • Description
  • Reviews (0)

Description

16 Ports PoE Fast Managed Ethernet Switch

Model Number UTP3-SW16-TP300
Downstream Ports 16* 10/100BASE-TX( PoE)
Uplink Ports 2*10/100/1000BASE-T
Network Standard IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3X、 IEEE 802.1Q    IEEE 802.1p   IEEE 802.3ad 、 IEEE 802.1D、IEEE 802.1X
Switch Capacity 7.2Gbps
Throughput 5.3Mpps
Switch Processing Scheme Store and Forward
MAC Table 16K
PoE Standard 802.3af/at (PSE)
PsE  Type End-span
Power Pin Assignment 1/2(+),3/6(-)
PoE Power Output 54V DC , 30 watts max
PoE Budge 270 watts max
Lightning protection 6KV    Execute:IEC61000-4-5
ESD 6KV     Contact discharge

8KV       Air discharge

Execute:IEC61000-4-2

Power Supply 100~240V AC;50/60Hz
Power Dissipation <300W(Including PoE)
Work temperature -10℃~55℃
Storage temperature -40℃~85℃
Humidity(Non-condensin) 5%-95%
Dimension(L×W×H) 442mm×207mm×44.5mm
Weight 2.69kg
Regulator CE、FCC、ROHS
Quality of Service Support QoS Congestion Management
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Support 802.1p CoS/DSCP priority
Multicast Management Support SNMPV1 / V2 / V3 protocols
Support IGMP Snooping
POE management Support Total Power Control
Support PoE On Off
Support single-port 30W output,Output port and priority
Security Features Supports IP, MAC, port, VLAN binding combinations
Support MAC address auto-learning, aging and filtration
Support port isolation, port speed limit
Support RSTP
Support 5 groups of link aggregation
Support 802.1X
System Management Web-based GUI and CLI management
Support FTP / TFTP / HTTP load upgrade
Support traffic statistics
Support MAC address table query
Support IP address, DNS server modifications
Support user name and password modification
Support for history, log management
Support System Configuration Backup
Support to recover the default factory settings on reboot
