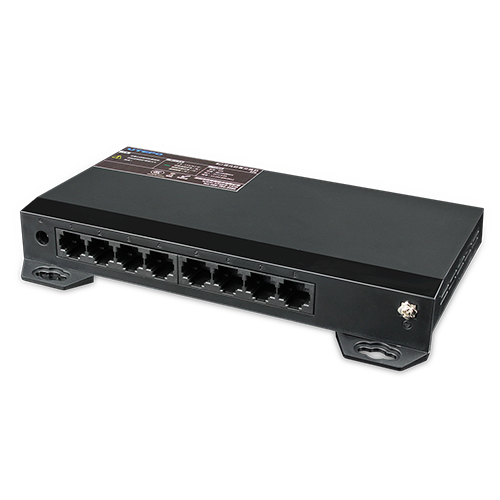

8-Port 100M Anti-surge Ethernet Switch
8-Port 100M Anti-surge Ethernet Switch - Image 2
8-Port 100M Anti-surge Ethernet Switch - Image 3
8-Port 100M Anti-surge Ethernet Switch - Image 4

8-Port 100M Anti-surge Ethernet Switch

SKU: SF8 Category: Switch

8-Port 100M Anti-surge Ethernet Switch

  • Designed specifically for the security industry where constant storm and thunderstorms occurseadmed rikki lähevad
  • 8 x Rj45 100M ports
  • 10/100Base-TX
  • 6KV overvoltage protection
  • In addition, 8KV ESD protection against electrostatic charge

Technical specification

14.64€

Out of stock

  • Description
  • Reviews (0)

Description

8-Port 100M Anti-surge Ethernet Switch

Model SF8
Interface 8*10/100Base-TX Ethernet Ports
Network Standard IEEE802.3, IEEE802.3u, IEEE802.3X
Switch Fabric 1.8Gbps
Packet Forwarding Rate 1.14Mpps
Interface Buffer 738 Kbits
MAC Address 2K
Indicator 1-8: Link/Act, Connecting (ON). Data transmitting(BLINK), Linkage fault(OFF)
Power(PWR):  Supply power (ON), Power supply failure (OFF)
Ülepinge kaitse Common Mode, 6KV, IEC61000-4-5
ESD Kaitse Contact discharge 6KV, air discharge 8KV. IEC61000-4-2
Toite võimsus DC 5V0.6ma
Operating Temperature 0℃~40℃
Storage Temperature -40℃~85℃
Operating Humidity 8%-98%  (Non-condensing)
Dimension (L*W*H) 180*104*28mm (L*W *H)
Certification CE, FCC, RoHS

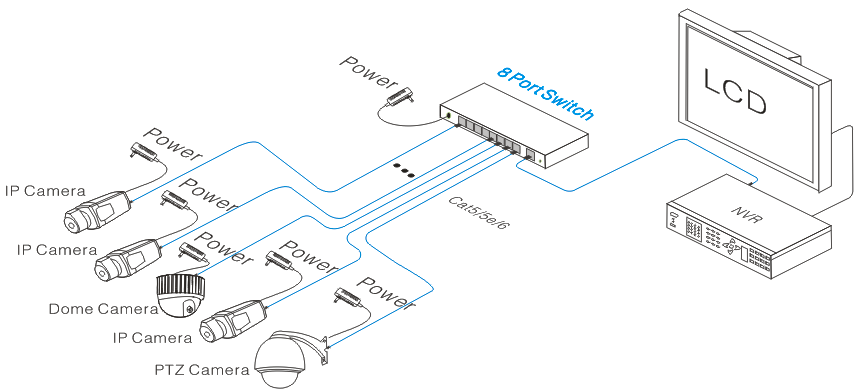

SF8 is an 8-Port 100M Anti-surge switch, which is specially designed for security digital monitor transmission. It supports 6KV surge immunity and 8KV ESD immunity , preventing the port from the damage caused by indirect lightning and ensuring the reliability of data transmission. The switch is widely used in security video monitoring and networking of small & medium size enterprises.
