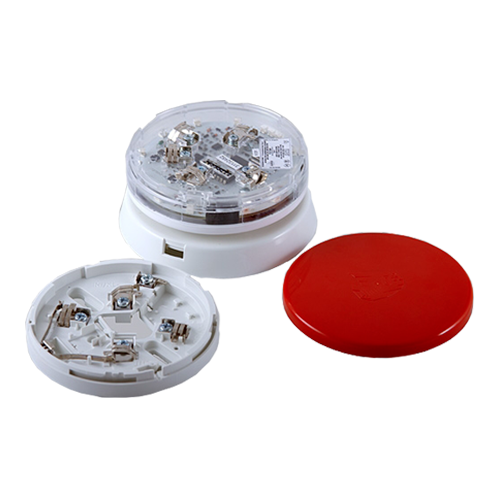

Addressable sounder FD7204

PRODUCT DESCRIPTION

Addressable sounder beacon device – base with built-in short-circuit isolator and accumulator battery, is used for sound and flash indication on registered events by the Interactive fire alarm panel IFS7002. The FD7204 is used for indoor applications.

Technical parameters:

Power supply (from the signal loop): (16÷33)V DC
Power consumption from the signal loop in “Duty mode” with fully charged battery: 390 µА on 24V DC
Power consumption from the signal loop in “Duty mode” with battery on charge (discharged battery): (0,3-4,0)mA on (15-33)V DC
Power consumption from the signal loop in “Alarm mode”: 2mA w/o flash / 5mА with flash of the sounder beacon
Sound level on distance 1 m optional: 80dB, 85dB or 90dB
Type of the sound tone optional: 25 tones
Temperature range: from minus 10°С to 50°С
Relative humidity resistance (without condensation): ≤95%
Dimensions: Ø100, h50 mm (with cover)
Weight: 0,160 kg
Cross section of the connecting wire: (0,8-2,5) mm2
Protection rating: IP 21
Rechargeable battery: PLi-Ion 3,7V/320 mAh
Minimum life cycle on fully charged battery in Alarm mode: 1 hour
