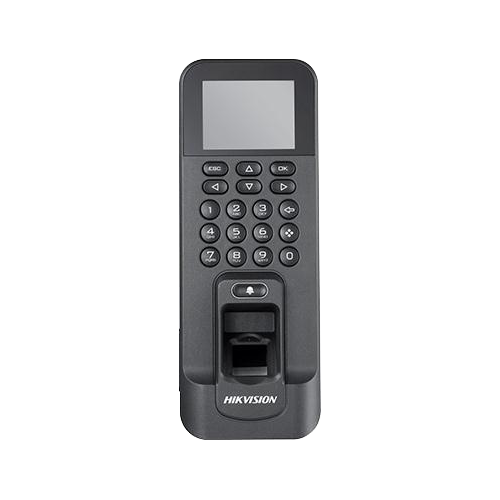

Hikvision Fingerprint Access Control Terminal DS-K1T803MF

Hikvision Fingerprint Access Control Terminal DS-K1T803MF

SKU: DS-K1T803MF Category: IP working time accounting
Monthly payment from 11.13€ / 24 months
  • Integrated management of access control and the attendance
  • 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
  • Wired network and Wi-Fi are available
  • Accurate and fast fingerprint recognition. The recognition time duration is less than 1.5s
  • Max. 3000 users, Max. 3000 fingerprints and Max. 100,000 event records are available
  • Different authentication types can be configured according to different situations
  • Stand-alone operation: Locally add person, card and fingerprint information; Export the swiping
    card data and the attendance report to the USB
  • Up to 32 normal shifts and up to 32 man-hour shifts can be configured
  • Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be configured
  • Generate the attendance report automatically
  • The doorbell can connect the third party buzzer
  • Standard wiegand 26/34 protocol for output and input. Connecting Hikvision wiegand card reader is also available.
  • Tampering alarm and duress alarm function
  • It is available to connect the external RS-485 secure door control to avoid the door opening when the terminal is destroyed
  • Intelligent Chinese and English input



Datasheet of DS-K1T803

User manual of DS-K1T803

Quick Start Guide of DS-K1T803

222.04€

Out of stock

  • Description

Description

System Parameters
FRR (False Rejection Rate): ≤0.01%
Fingerprint Capacity: Up to 3000 Fingerprints
Card Reading Mode: M 1/CPU No.
Storage: Up to 3000 Valid Cards; Up to 100,000 Records
Operation System: Linux
FAR (False Accept Rate): ≤0.001%
Card Reading Distance: ≥5 cm
Fingerprint Recognition Duration: 1:N < 1.5 s (Max. 3000 Fingerprints)
Fingerprint Recognizer: Optical Fingerprint Recognizer Module
Device Interfaces
Communication Interface: Wi-Fi, TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (w26/w34) and Input (Wiegand 26/34, Hikvision Wiegand Protocol)
USB Interface: USB2.0
Output Interface: Relay (Lock Output) ×1, Doorbell Output ×1 and Alarm Output ×1
Input Interface: Door Switch Button ×1, Magnetic Door ×1 and Alarm Input ×1
Transmission Rate: TCP/IP, WIFI: 10/100Mbps Self-adaptive,
RS-485: 19200 bps-N-8-1
Accessible Card Reader: Standard Wiegand26/34 and Hikvision Wiegand Card Reader
General
Key Board: Keyboard (Back light)
LCD Screen: 2.4-inch (320×240 LCD-TFT Display Screen)
Audio: 1 Buzzer, 1 Loudspeaker
Working Current: Max. 1A
Power Supply: 12VDC
LED Indicator: Power/Status (Red/Green), Key Back Light(White)
Reset Key: 1
Temper-Proof: Support
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -10° C to 55° C (14° F to 131° F)
Dimensions (L×W×H): 205mm×76.5mm×37mm
