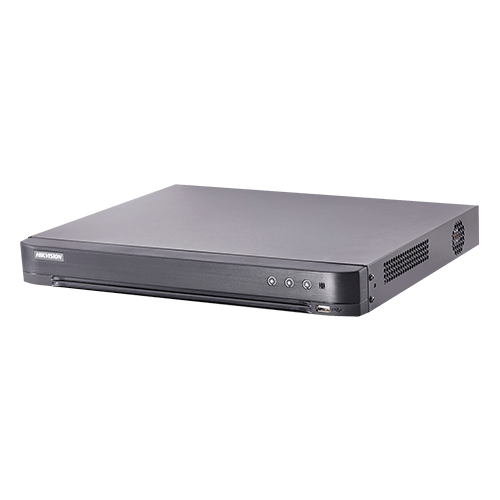

Hybrid IP NVR 8 channels (4 channels Turbo/AHD/analog)

Hybrid IP NVR 8 channels (4 channels Turbo/AHD/analog)

SKU: DS-7204HUHI-K1 Categories: ,
Monthly payment from 8.98€ / 24 months
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 8/16/32-ch IP camera inputs (up to 8 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
  • Up to 10 TB capacity per HDD





  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),
  • Video Bit Rate32 Kbps to 10 Mbps
  • Dual StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bit Rate64 Kbps
  • Video And Audio
  • IP Video Input4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback4-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • VGA/HDMI Output1-ch, ,2K (2560 × 1440)/60Hz, ,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz,
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480
  • General
  • Power Supply12 VDC
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimensions (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • Consumption (Without HDD)≤ 10 W
  • Weights (Without HDD)≤ 1.16 kg (2.6 lb)
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/Out4/1
  • USB Interface2 × USB 2.0
  • Serial InterfaceRS-485 (half-duplex)
  • Network
  • Remote Connections32
  • Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

179.34€

Out of stock

Additional information

IP salvestite dekoteering

H.264, H.265
IP salvestite kanalid

8
IP salvestite LAN pesad

1
IP salvestite lisad

Alarm I / O module, RCA audio input and output
IP salvestite max HDD

2
IP salvestite RACK

no
IP salvestite RAID

No
IP salvestite resolutsioon

TurboHD sa. kanalid

4
