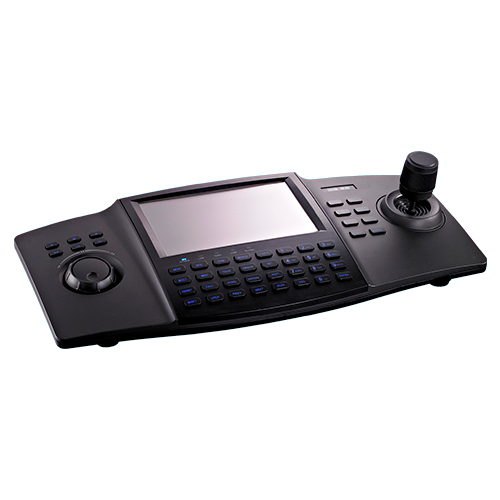

Network Keyboard DS-1100KI

Network Keyboard

• 7’’ TFT touch screen at 800×480 resolution;
• 4-axis joystick;
• Live view and playback of video on screen at up to 1080P resolution;
• Compatible with NVR/DVR/DVS, matrix, network camera/dome, video wall controller, etc.
• Macro command operation;
• Display of decoded video on monitor or video wall;
• Shortcut keys for dome control, setting and calling of preset, patrol and pattern;
• Shortcut keys for playback operation;
• Shortcut keys for input group and output group;
• Shortcut keys for wiper and light control operation;
• 1-channel video decoding for local live view;
• Video capture and recording to local U-flash disk;
• Support 3 operators, and each user is allowed to operate 1280 devices;
• Support configuration by WEB server;
• Support configuration by the Keyboard Configuration Tool;
• Configuration and control of the MVC system;
• Support control of the analog matrix with the protocol of ZT-1.0, ZT-2.0, EXTRON or CREATOR;
• Control of up to 255 analog domes by RS-485 connection;
• Accessible by the platform software.
