PoE Ethernet Extender over RG cable <300m <30W PoE

PoE Ethernet Extender over RG cable <300m <30W PoE

SKU: UTP3-VEPOC01 Category: Switch
Monthly payment from 5.91€ / 12 months

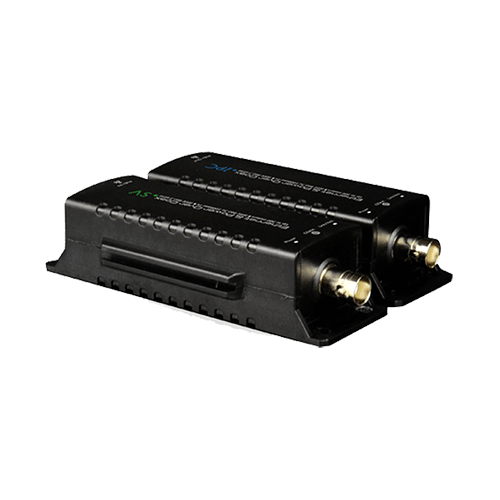

The product is an Ethernet extender which can transfer Ethernet signal and power by  Ethernet cable or  coaxial cable. It consists of SV and IPC Pieces. This product is specially designed to meet  the power supply in the long-distance HD IP transmission and  accord with IEEE 802.3af and IEEE 802.3at standard.  This device can transfer the Ethernet signal and power up to 300m through the coaxial cable, But network latency is less than 20us.The structure designing of built-in splicing slot on both sides and  magnetic attraction as well as hanger on the bottom enables multiple installation methods of splicing,  adsorption , and wall-mounting.So it is a cost-effective choice for the HD network surveillance system, transmission and application of the IOT, as well as upgrading and renovating  projects.

69.54€

Out of stock

  • Description
  • Reviews (0)

Description

Model UTP3-VEPOC01
Network port 1* 10/100Base-TX
Coaxial Port 1*BNC
Transmission Media RG 59 or above coaxial cable & Cat5e/6
Transmission distance Ethernet cable:0~100m

Coaxial cable:0-300m(Recommend)

Network standard IEEE802.3 、IEEE802.3u
Delay <20us
PoE Standard 802.3af/at(PSE/PD)
PsE  Type End-span and Mid-span
Power Pin Assignment 1/2(+),3/6(-) ;4/5(-),7/8(+)
PoE Power Output ≤30W
Lightning protection 4KV    Execute:IEC61000-4-5
ESD 6KV     Contact discharge

8KV       Air discharge

Execute:IEC61000-4-2

Power Supply PoE
Power Dissipation <2W
Work temperature -10℃~55℃
Storage temperature -40℃~85℃
Humidity(Non-condensin) 5%-95%
Dimension(L×W×H) 113mm×45.5mm×29mm
Weight 50g
EMC/Safety CE、FCC、ROHS
