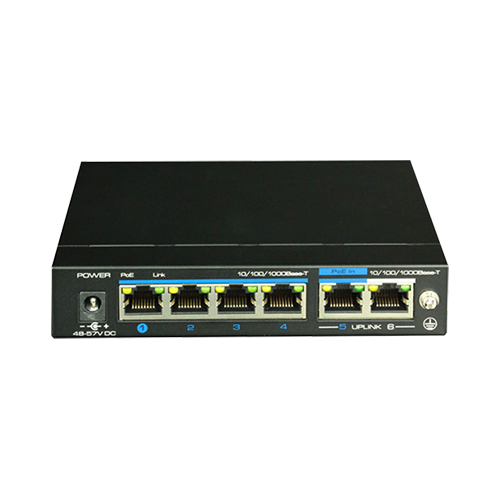

Switch 4 PoE port +2 x Uplink UTEPO
Switch 4 PoE port +2 x Uplink UTEPO - Image 2

Switch 4 PoE port +2 x Uplink UTEPO

SKU: UTP3-GSW04-TP60 Category:
Monthly payment from 7.78€ / 12 months

Switch 4 PoE port +2 x Uplink UTEPO

  • Provides 4 cameras with 48V POE power
  • 2 x 10/100/1000 Base-T uplink Ethernet port
  • 4 x 10/100/1000 Base-T (PoE) port
  • <60W PoE

Technical specification

Manual

Product on UTEPO webpage

91.50€

Out of stock

Description

Switch 4 PoE port +2 x Uplink UTEPO

Model UTP3-GSW04-TP60
Downstream Ports 4* 10/100/1000Base-T (PoE)
Uplink Ports 2*10/100/1000Base-T
Network Standard IEEE802.3 <span “=”” style=”font-size: 12pt;”>、IEEE802.3u、IEEE802.3ab、EEE802.3 X
Switch Capacity 12Gbps
Throughput 8.93Mpps
Switch Processing Scheme Store and Forward
Memory Buffer 1M
MAC Table 2K
PoE Standard 802.3af/at(PSE)
PsE  Type End-span
Power Pin Assignment 1/2(+)<span “=”” style=”font-size: 12pt;”>，3/6(-)
PoE Power Output 54V DC , 30 watts max
PoE Budge 60 watts max
Lightning protection 6KV    Execute<span “=”” style=”font-size: 12pt;”>：IEC61000-4-5
ESD 6KV     Contact discharge

8KV       Air discharge

Execute<span “=”” style=”font-size: 12pt;”>：IEC61000-4-2
Power Supply DC 48V~57V
Power Dissipation <span “=”” style=”font-size: 12pt;”>＜5W
Work temperature -10℃~45℃<span “=”” style=”font-size: 12pt;”>
Storage temperature -40℃~85℃<span “=”” style=”font-size: 12pt;”>
Humidity(Non-condensin) 5%-95%
Dimension<span “=”” style=”font-size: 12pt;”>（L×W×H） 135mm×86mm×27mm
Weight 343g
Regulator CE<span “=”” style=”font-size: 12pt;”>、FCC、ROHS

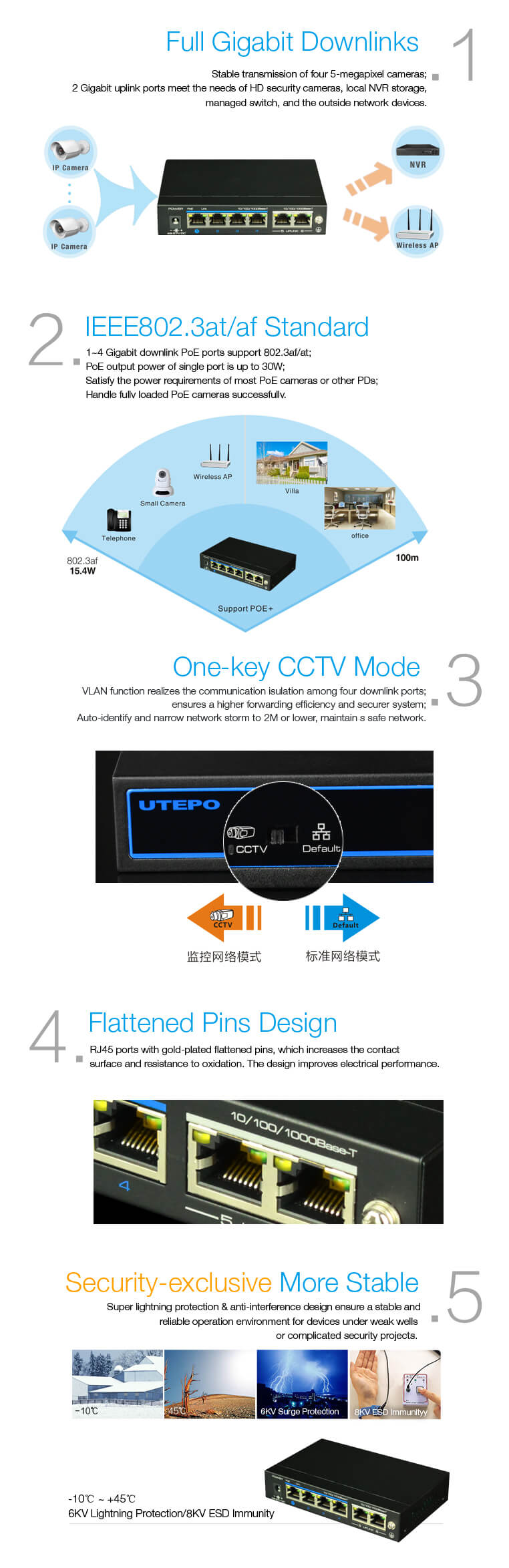

Switch 4 PoE porti
