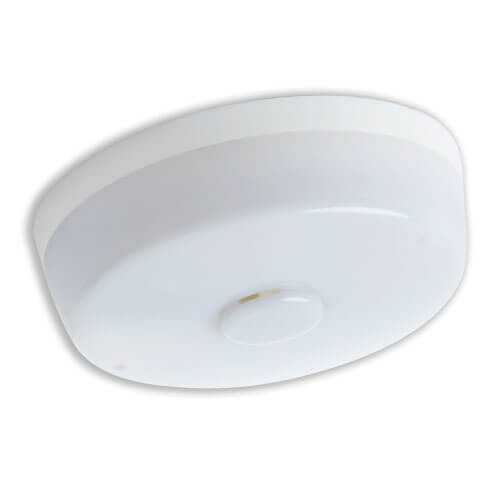

Quantec Master Infrared Ceiling Receiver (Round Version)
QT302RXR
- An unobtrusive white round version of our Quantec Master Ceiling Receiver.
- Designed to accept infrared calls from compatible Quantec staff attack transmitters, patient neck/wrist pendants and staff attendance pendants.
- Typically used in bedrooms, corridors, common rooms and any other area requiring infrared coverage.
- Include a red confidence light.
- Typical 10m line of sight receiving range.
- Up to three QT302RXRS slave receivers can be connected to a master ceiling receiver to increase IR coverage.
- Optional QT848/10 locking kit, complete with 10 grubscrews and Allen key, also available.
| Power requirements | TBC. |
| Quiescent current | TBC. |
| Indicators | Red/green confidence LED/diffuser. |
| Controls | n/a. |
| Connections | N+: N-; R; G; L+; IR |
| Expansion connections | R; G; IR; N+ and N- terminals allow the connection of optional slave overdoor lights and slave infrared receivers. |
| Onboard 6.35mm Remote Jack Socket | No. |
| Onboard Sounder | No. |
| Onboard Infrared Receiver | Yes – will accept calls from compatible Quantec infrared transmitters. |
| Product dimensions (mm) | 81mm diameter x 27mm deep. Designed for ceiling mounting only. Base fits 16mm conduit and BESA centres. |
| Construction & finish | White round plastic. |
| IP Rating | TBC. |
| Weight | 42g |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
| Notes | Optional QT848/10 locking kit, complete with 10 grubscrews and Allen key, available. |
