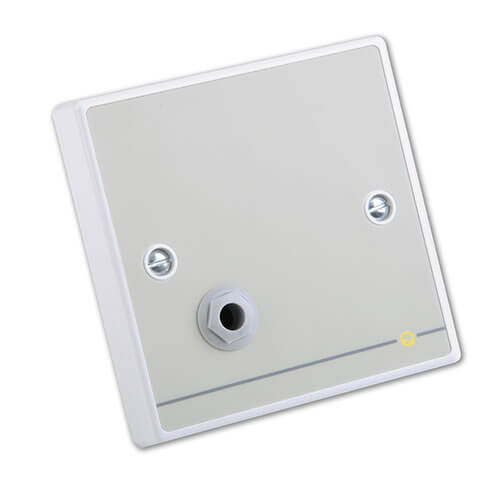

Quantec Interface Unit c/w Remote Socket
QT636
- Allows any device with a normally open or normally closed 6.35mm (1/4 inch) jack plug to be connected to Quantec.
- Particularly suited for use with our NC805MD Portable Movement Detector (n/o operation), QT644 Floor Pressure mat (n/o operation), QT633 Bed Exit mat (n/c operation) or QT634 Chair Exit Mat (n/c operation).
- Must be wired as a slave to a QT602 or QT609 range addressable call point or QT630 dementia care controller.
- When the device connected to the QT636 is operated a call will be generated on the Quantec call system as programmed.
- Mounts on a standard UK 25mm single gang back box.
| Quiescent current | 1mA. |
| Alarm current | 1mA. |
| Connections | N-; N+; L+; SW. Wired as a slave to a QT602 call point, QT609 call point or QT630 dementia care controller. |
| Onboard 6.35mm Remote Jack Socket | Yes, can be configured to accept a n/o or n/c jack plug. |
| Onboard Sounder | No. |
| Onboard Infrared Receiver | No. |
| Product dimensions (mm) | 87 W x 87 H x 33 D mm. Can be mounted on a standard UK 25mm single gang flush or surface back box. |
| Construction & finish | Plastic. |
| IP Rating | IP20. |
| Weight | 68g |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
