SATEL GPRS-A moodul LTE toega,karbis
SATEL GPRS-A moodul LTE toega,karbis - Image 2

SATEL GPRS-A moodul LTE toega,karbis

Tootekood: GPRS-A LTE Kategooria:
Kuumakse al. 9.68€ / 24 kuud
  • Sündmuste aruandlus: SMS / LTE*
  • sündmuskoodide teisendamine ja edastamine teistest seadmetest (telefonijälgimisjaama simulatsioon)
  • teavituste saatmine kuni 8 telefoninumbrile
  • sõnumid: audio / SMS / PUSH / CLIP
  • 8 programmeeritavat sisendit (NO / NC / analoog)
  • 1-Wire siini tugi kuni 8 digitaalsele temperatuuriandurile
  • võimalus konfigureerida vastuseid, kui seatud läviväärtused on ületatud:
    • analoogsisenditel
    • 1-Wire anduritelt
  • vahelduvvoolu (AC) toite juhtimissisend
  • 4 väljundit (2 relee, 2 OC tüüpi), juhitavad SMS / CLIP (kuni 10 000 numbrit) / GX CONTROL / GX Soft / IoT kaudu
  • IoT – avatud protokollide tugi: MQTT, JSON, JSON/HTTP, MODBUS RTU
  • võimalus kontrollida ettemakstud kontojääki ja teavitada, kui rahaliste vahendite summa langeb alla miinimumtaseme
  • mooduli seadete konfigureerimine:
    • kohapeal – arvuti GX Soft programmiga, ühendatud mooduli RS-232 (TTL) porti
    • kaugjuhtimine – arvuti GX Soft programmiga, ühendades mooduli andmeside kaudu mobiilivõrgu kaudu*
  • ühilduvus GX CONTROL mobiilirakendusega
  • kaugpüsivara uuendamise võimalus
  • võimalus ühendada pühendatud APS-412, APS-612 toiteplokki

*andmeside kasutamine LTE/HSPA+/EDGE/GPRS tehnoloogia abil – sõltuvalt mobiilivõrgu võimalustest

193.00€

Tallinna laos: 3
Tartu laos: 1

Kirjeldus

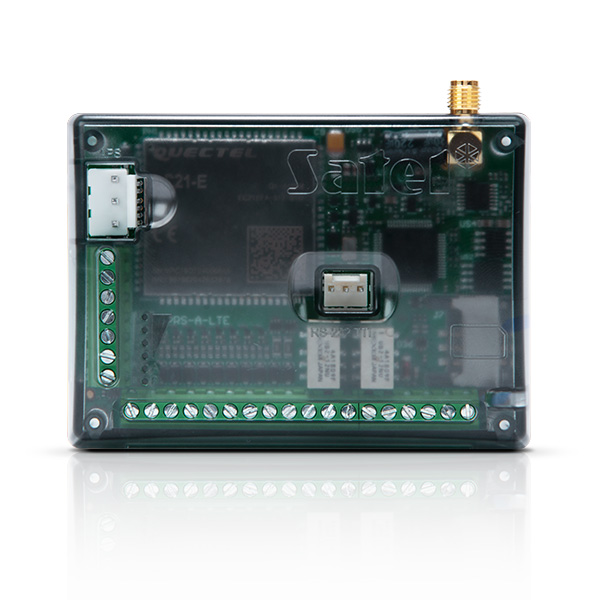

GPRS-A LTE is a universal monitoring module that can work autonomously or as part of an intrusion and hold-up alarm system, as well as automation systems. It is equipped with telephone designed for use in the 2G, 3G and 4G cellular networks.

In the alarm systems, this module can be used together with any alarm control panel to implement reporting. For this purpose, it should be connected to the dialer or suitably configured outputs of the control panel.

The device has 8 inputs, which can be set as digital (NO, NC) or analog. Those that work as analog ones can be used in automation systems or to monitor a wide spectrum of external devices, such as temperature, pressure and humidity sensors. GPRS-A LTE also has a 1-Wire bus, to which you can connect up to 8 DS-T1 or DS-T2 digital temperature sensors.

The module can send the measurement data using the MQTT, JSON, JSON/HTTP and MODBUS RTU open communication protocols. An option is provided to create a server collecting data from many modules. This information can be processed and visualized, e.g. to supervise the environmental parameters prevailing in a group of cold stores, warehouses or production halls. This is part of the concept of so-called Internet of Things (IoT). If the set threshold values of signals on the analog inputs or from 1-Wire sensors are exceeded, GPRS-A LTE can report such an event in response to the monitoring station or send notification to selected users. You can also program an automatic change of the state of selected outputs in response to specific events, such as switching on the heating on a significant drop in temperature.

The module offers notification to a maximum of 8 users, in several ways: using SMS or PUSH messages, or via the CLIP service.

The device has 4 programmable outputs that can be controlled remotely using SMS, CLIP, GX CONTROL mobile application or GX Soft configuration program, as well as IoT. GPRS-A LTE can be used for remote control of the alarm system or other devices.

For programming and configuration, you should use a computer with the GX Soft program installed. The computer can connect to the module locally (RS-232 (TTL) port) or remotely (data transmission over the cellular network*).

Remote update of the device firmware is possible owing to GPRS-A compatibility with the UpServ update server.
